BIO-HELIX - PMI11-0500

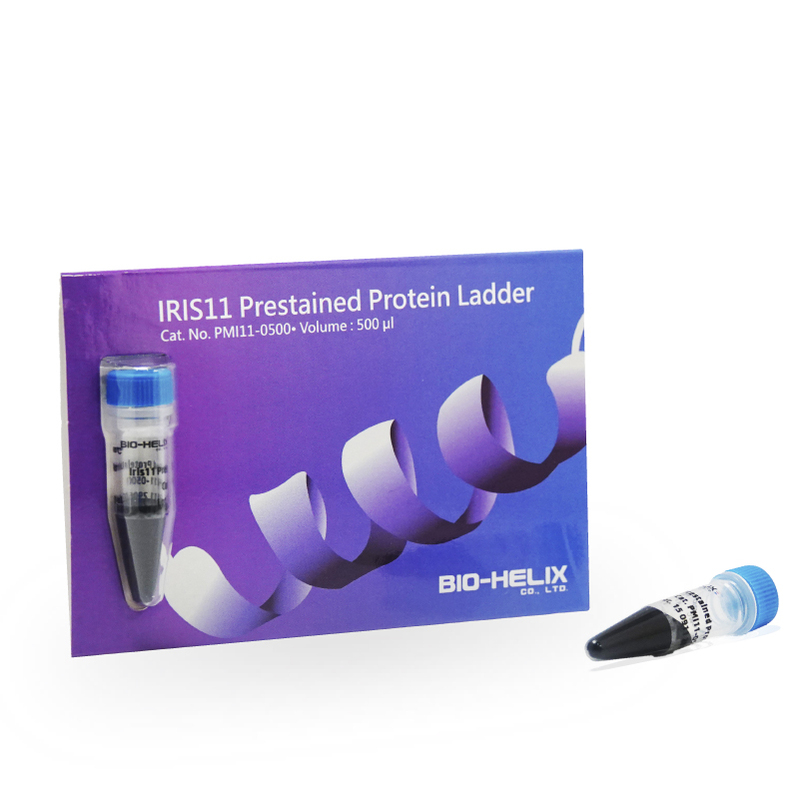

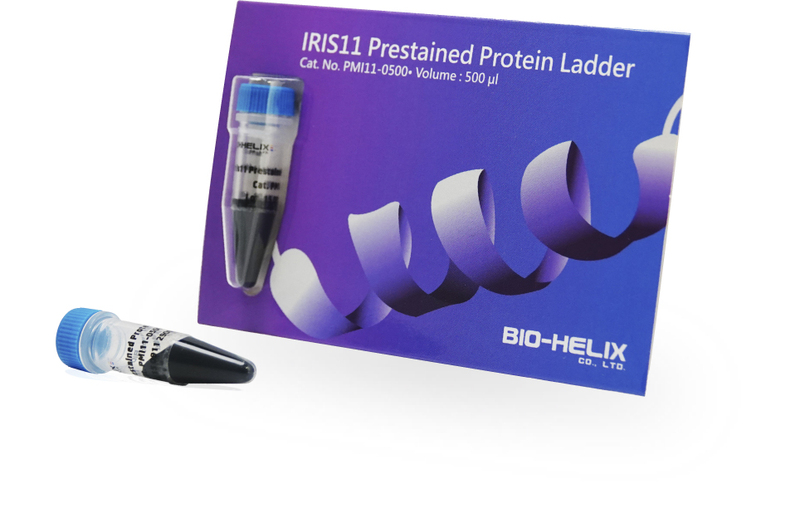

IRIS11 Prestained Protein Ladder

Size: 500 μl



Note: Protein Marker / Protein Standard / SDS-PAGE / Western Blot / 9 bands / SDS-polyacrylamide gel electrophoresis
Categories: Protein Marker/Ladder

The IRIS11 Prestained Protein Ladder is a combination of 11 pre-stained proteins with molecular weights from 3 to 260 kDa. The 11 recombinant proteins are covalently coupled with blue chromophore, while 2 red bands at 70 kDa and 260 kDa, a green band at 15 kDa and a newly designed peacock green band at 60 kDa serve as reference bands. The IRIS11 Prestained Protein Ladder keeps track of the size and separation of proteins during SDS-polyacrylamide gel electrophoresis, approximating the target protein size and validating the Western transfer efficiency on PVDF, nylon, or nitrocellulose membranes.

Prestained Protein Ladder with bands down to 3kDa


Guide for Molecular Weight Estimation (kDa)

Refer to the IRIS11 Prestained Protein Ladder patterns in various electrophoresis conditions:

3 μl or 5 μl per loading for clear visualization during electrophoresis on 15-well or 10-well mini-gel, respectively. 2.5 μl per well for general Western transferring.

Note: The molecular weight of each protein (kDa) was measured against an unstained protein ladder in every electrophoresis condition. Additional data should be considered for a more accurate adjustment.



Storage Buffer :

0.2~0.4 mg/ml of each band of protein is stored in a mixture of solution that contains: 20 mM Trisphosphate at pH 7.5, 2% SDS, 0.2 mM Dithiothreitol, 3.6 M Urea, and 15% (v/v) Glycerol.



Quality Control :
5μl of IRIS11 Prestained Protein Ladder (PMI11) resolves 11 bands in 4-20% SDS-PAGE (Tris-glycine buffer) and after Western blotting to PVDF membrane.



Storage :
Stable for up to 2 weeks at 25°C.
Stable for up to 3 months at 4°C.
Stable for up to 24 months at -20°C.

  • Vertical Electrophoresis system
  • Power supplies
  • Vortex or equivalent
  • Microcentrifuge
Name Download
PROTOCOL PMI11_Protocol_20211224.pdf
Safety Data Sheet|SDS PMI11_SDS.pdf
